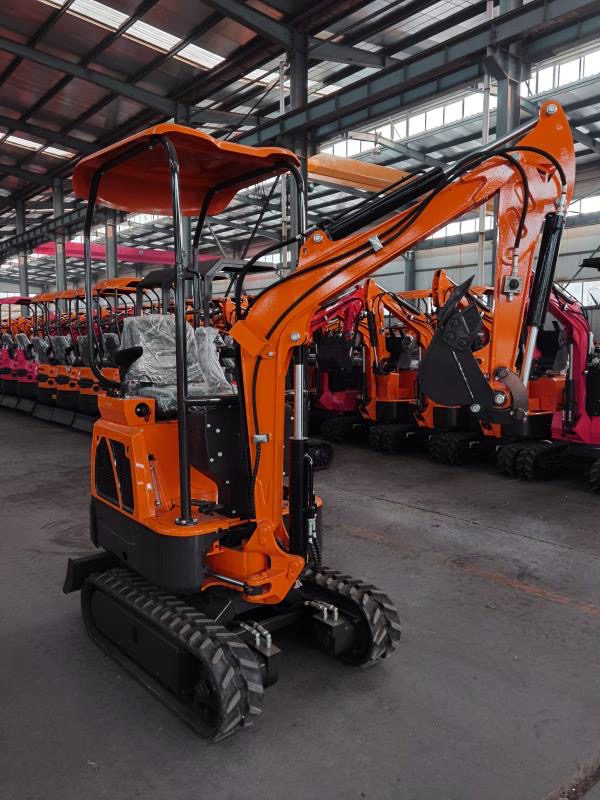

emed mini excavator em1.2 yanmar engine, swing boom + free attachments

Sold

More Images

Seller's Description

Operating weight of 1200kg this excavator is designed for small works and projects.

High quality Yanmar engine with stable performance. More power, low fuel consumption. Using world advanced reliable engine, high efficiency, low vibration, low noise, ensuring enough power output, can be used in all environments, engine is easy to be started even in the coldest climate. Adopting big power Yanmar TNV direct injection diesel engine, green emission, with high power output.

Based on matching technology of excellent engine and a fully imported hydraulic system, our excavators have more power output and improve working speed and helps to reduce fuel consumption.

Standard FREE Inclusions
• 200mm bucket.
• 340mm bucket.
• 500mm bucket.
• 800mm bucket.
• Mechanical quick hitch.
• Ripper.
• Rake.
• Log grab.
• Filter kit.
• Pins.

Specifications
Machine Weight: 1100kg.
Operating Weight: 1200kg.
Bucket Capacity: 0.025 m³/120kg.
Bucket Width: 340mm.
Engine: Yanmar 3TNV70.
Rated Power: 10 kw/13.4hp/2200r/min.
Track Type: Rubber track.
Displacement: 854 CC.
Max Torque: 51.9N.M/1600r/min.
Fuel Capacity: 16.4L Diesel.
Operating Pressure: 16MPa.
Main Pump: Zaneda Gear pump.
Hydraulic Flow Rate: 18L/min.
Hydraulic Oil Capacity: 16L.

Main Dimensions
Overall Dimension (L x W x H): 2770 x 896 x 1490mm.
Wheelbase: 770mm.
Chassis Width: 896mm.
Total Length of Track: 960mm.
Track Width: 180mm.
Chassis Ground Clearance: 132mm.

Operating Range
Max. Digging Depth: 1650mm max.
Vertical Digging Depth: 1376mm max.
Digging Height: 2365mm max.
Dumping Height: 1655mm max.
Digging Radius on Ground: 2560mm min.
Rotation Radius: 1200mm.
