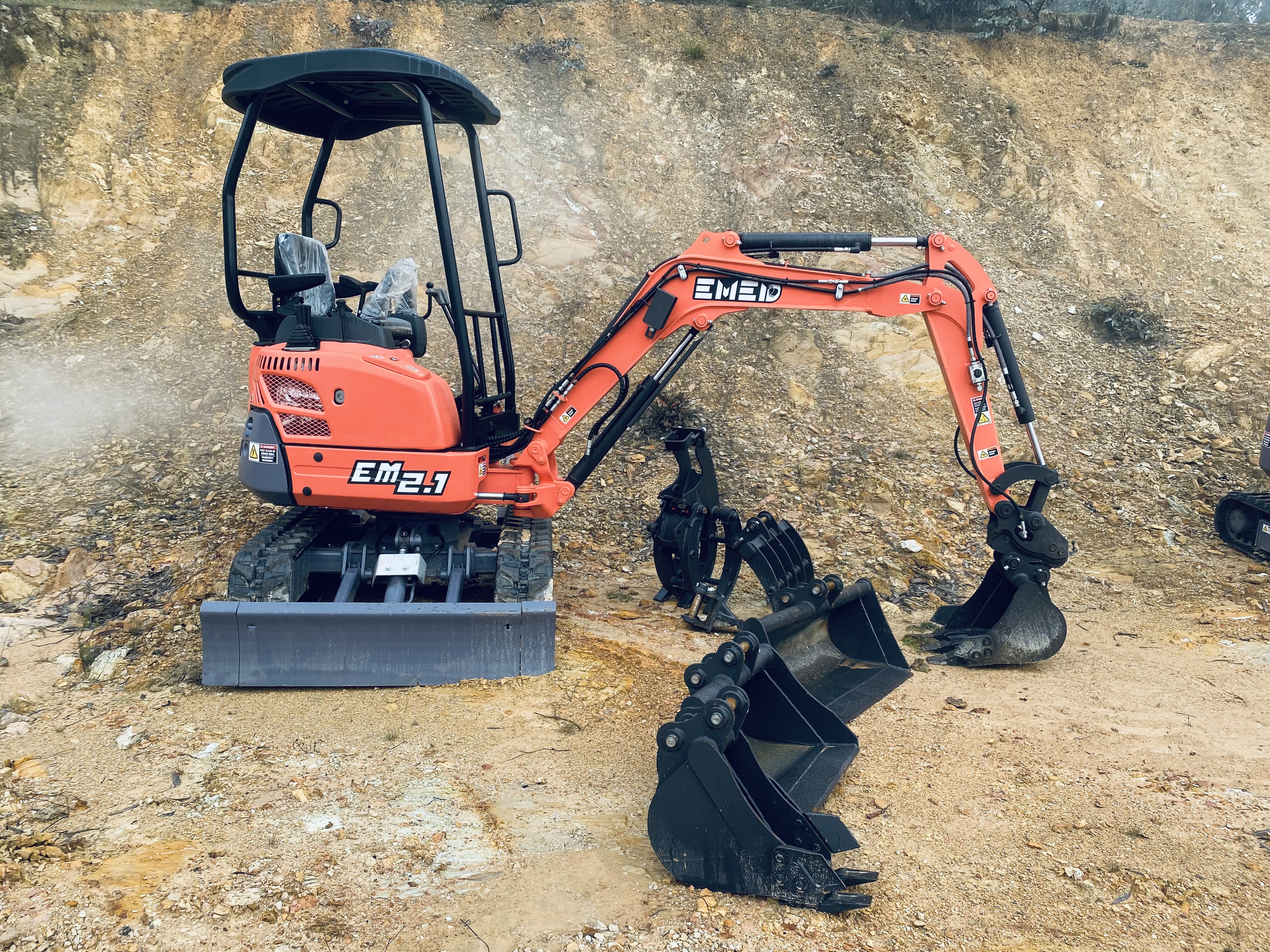

emed excavator em2.1 yanmar engine+ free attachments

The EM2.1 is our 2 Tonne Excavator, packed full of features. Swing boom, expandable tracks, pilot controls.

Standard inclusions:

• Trenching bucket 200mm.
• GP bucket 400mm.
• Mud bucket 600mm.
• Mud bucket 1000mm.
• Hydraulic quick hitch.
• Rake.
• Ripper.
• Mechanical grab.
• Filter kit.
• Tool kit.
• Pins.

Specifications
Model: EM2.1.
Brand: EMED.
Operating Weight: 1900kg.
Digging Bucket Capacity: 0.048cbm.
Digging Bucket Width: 420mm.
Engine: Yanmar 3TNV74F.
Rated Power: 13.7kw/18.4hp/11.2r/2200min.
Displacement: 0.854L.

Main Dimensions
Overall Dimension (LxWxH): 3400 x 990 (1240) x 2380mm.
Total Length of Track On Land: 1590mm.
Platform Ground Clearance: 473mm.
Platform Back Turning Radius: 790mm.
Chassis Width: 990mm (1240).
Track Width: 230mm.
Track Height: 360mm.

Operating Range
Max. Digging Depth: 3700mm.
Max. Vertical Digging Depth: 1740mm.
Max. Digging Height: 3275mm.
Max. Dumping Height: 2310mm.
Max. Digging Radius On Ground: 3610mm.
Min. Rotation Radius: 1580mm.
