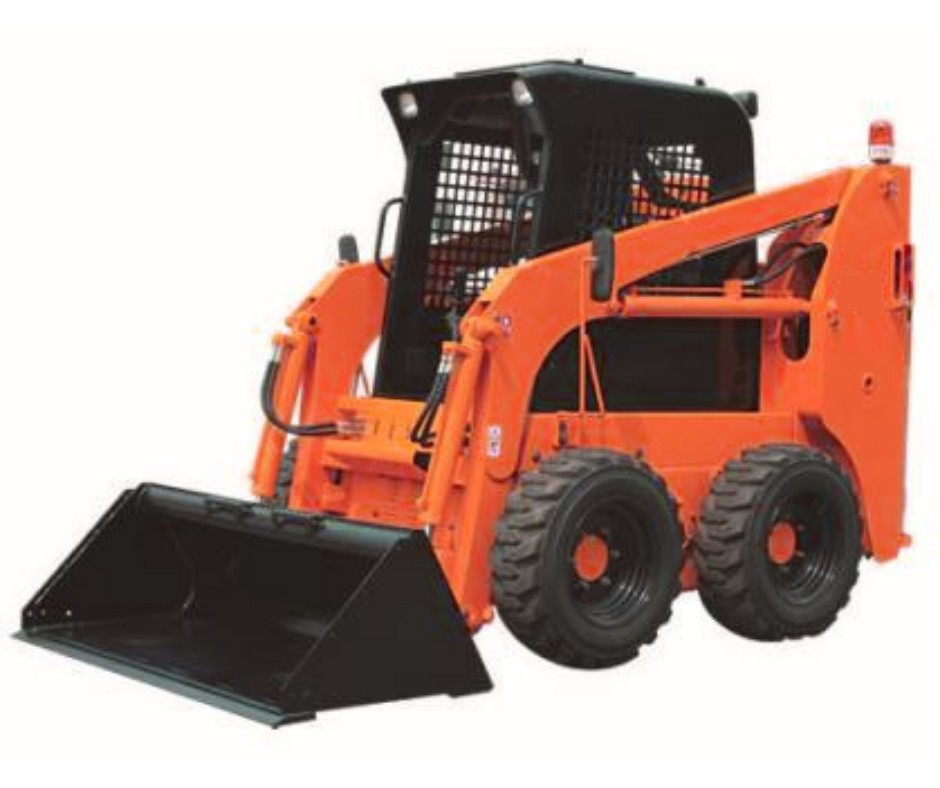

emed emst35 skid steer loader

1300 wide with enclosed cab, air conditioning and joystick controls.

Standard Inclusions

• Standard bucket.
• 4 in 1 bucket.
• Dozer blade.
• Air conditioned cab.

Specifications
Rated Operating Capacity (kg): 500.
Tipping Load (kg): 1000.
Bucket Capacity (m3): 0.25-0.4.
Operating Weight (kg): 2200.
Max. Travel Speed (km/h): 12.
Hydraulic Pump Flow (L/min): 4.
Fuel Tank Capacity (L): 50.
Tyres: 27*8.5-15-8NHS.
Overall Dimensions (mm): 2900 x 1300 x 2000.

Dimensions
Height At Maximum Extension (mm): 3300.
Height To Bucket Hinge Pin (mm): 2725.
Width With Bucket (mm): 1300.
Track Width (mm): 1080.
Wheelbase (mm): 891.
Ground Clearance (mm): 150.
Dumping Height (mm): 2050.
Maximum Reach (mm): 790.
Rollback At Ground: 26°.
Angle Of Departure: 20°.

Engine
Make/Model: Yanmar  3TNV88.
Net Power: 50hp/2600rpm.
Type: 4 cylinder in-line, water cooled.
Displacement (L): 2.156.
