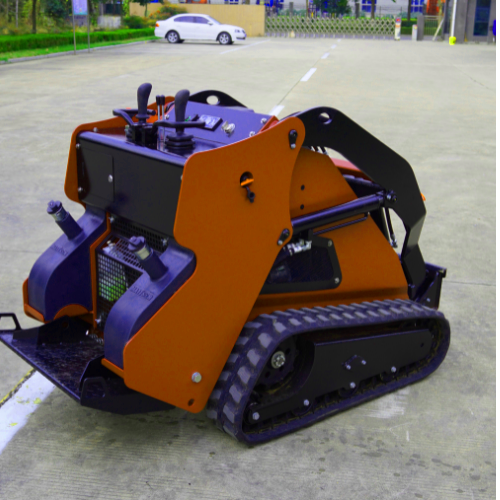

emed emss550ts mini track loader with telescopic arm + free attachments

Yanmar 4TNV86CT engine, telescopic arm, hydraulic control.

Standard FREE Inclusions

• Bucket: 750 x 1250 x 387mm - weight: 89kg.
• 4 in 1 bucket: 660 x 1100 x 558mm - weight: 145kg.
• Angled dozer blade: 30°adjustable, 1500 x 800 x 700mm - weight: 138kg.

Performance
Operating Capacity (35% Of Tipping Load): 862 kg retr, 403kg ext.
Tipping Load (SAE): 2463 kg retr, 1151kg ext.
Weight (SAE): 2300kg.
Travel Speed: 8.3 km/h.

Engine/Electrical
Make/Model: Yanmar 4TNV86CT (EC stage 5&EPA/ARB-OR Tier4).
Fuel/Cooling:  Diesel/liquid.
Horsepower (SAE Gross): 355kW.
Maximum Governed RPM: 2400 RPM.
Number of Cylinders: 4.
Displacement: 2091L.
Bore/Stroke: 86mm/90mm.
Fuel Consumption: 83 L/h.
Lubrication: Gear pump pressure.
Crankcase Ventilation: Closed.
Air Cleaner: Dry replaceable cartridge with safety element.
Ignition: Diesel-compression.
Engine Coolant: Propylene glycol/water mix (53%-47%) with freeze protection to -37°C.
Starting Aid: Glow plugs.
Alternator: Belt driven; 80 amps; open.
Battery: 12 V; 120Ah.
Starter: 12V; gear reduction type; 23kW.

Hydraulic System
Pump Type: Engine driven, double closed circuit axial piston pumps and two gear type.
Walking Pump Capacity: 2 × 456L/min@2400 RPM.
Auxiliary Pump Capacity: 648L/min@2400 RPM.
System Relief @ Quick Couplers:  210 bar.
Hydraulic Filter: Full flow replaceable, 10 micron synthetic media element.
Hydraulic Cylinders: Double-acting.
Control Valve: Working: 3-Spool; Auxiliary: 2-Spool; open center series parallel configuration.

Cylinder Diameter
Lift Cylinder (2): 55 × 30 × 767mm.
Tilt Cylinder (2): 55 × 30 × 275mm.
Telescoping Cylinder (2): 40 × 25 × 690mm.

Drive System
Main Drive: Fully hydrostatic rubber track drive.
Transmission: Direct drive of hydrostatic motor to main undercarriage drive sprocket.
Tracks: 250 mm wide.
Rollers: 5 each side.
Pressure: 355kPa.

Capacities
Cooling System: 14 L.
Fuel Tank: 50 L.
Engine Oil With Filter: 74L.
Hydraulic Reservoir: 58 L.
Hydraulic System: 72 L.

Controls
Vehicle Steering: Direction and speed controlled by one multi-function handle Loader Hydraulics.
Lift & Tilt: Controlled by one hand lever.
Telescoping: Controlled by one hand lever.
Front Auxiliary (Std): Controlled by fore and aft movement of hand lever.
Auxiliary Pressure Release: Fore and aft movement of hand lever after engine has been shut off.
Engine Hand Lever Throttle: Key-type starter switch and shutdown.
Starting Aid: Glow plugs – activated by key switch.
Service Brake: Two independent hydrostatic circuits controlled by one multi-function handle.
Parking Brake: Brake switch on left side of control panel.
