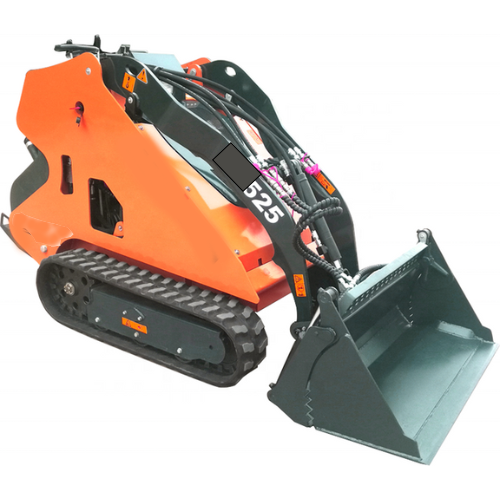

Yanmar // 3TNV80F-SDWB engine, hydraulic pilot control, 4 in 1 bucket. Compact design, light weight, easy to transport, perfect for those tight access spots.
Standard Inclusions
Bucket: 750 x 1250 x 387mm - weight 89kg.
4 in 1 bucket: 660 x 1100 x 558mm - weight 145kg.
Angled dozer blade: 30°adjustable, 1500 x 800 x 700mm - weight 138kg.
Performance Operating Capacity (35%): 312 kg. Operating Capacity (50%): 446 kg. Tipping Capacity: 892 kg. Weight (No Attachment): 1050 kg. Travel Speed: 6.9 km/h.
Engine/Electrical Make/Model: Yanmar // 3TNV80F-SDWB. Fuel/Cooling: Diesel/liquid. Horsepower (SAE Gross): 18.2kW. Maximum Governed RPM: 3000 RPM. Max Torque @ 1900 RPM: 71.5 Nm. Number of Cylinders: 3. Displacement: 1.267L. Bore/Stroke: 80mm/84 mm. Specific Fuel Consumption: 282g/kW-h. Lubrication: Gear pump pressure. Crankcase Ventilation: Closed. Air Cleaner: Dry replaceable cartridge with safety element. Ignition: Diesel-compression. Engine Coolant: Propylene glycol/water mix (53%-47%) with freeze protection to -37°C. Starting Aid: Glow plugs. Alternator: Belt driven; 40 amps; open. Battery: 12 V; 65Ah. Starter: 12 V; gear reduction type; 1.1 Kw. Applied Regulation: EPA Final Tier4，EU StageⅤ.
Hydraulic System Auxiliary Pump Type: Gear pump. Auxiliary Pump Capacity: 42L/min@ 3000 RPM Auxiliary Pump Relief: 210 bar. Ground drive pump Type: Double closed circuit axial piston pumps. Ground drive pump capacity: 2 × 38.4L/min@ 3000 RPM. Ground drive pump relief: 180 bar. Hydraulic Filter: Full flow replaceable, 10 micron synthetic media element. Hydraulic Cylinders: Double-acting. Main Control Valve: 2-Spool, open center series parallel configuration. Attachment Control Valve: 2-Spool, open center series parallel configuration. Main pump: Hansa-TMP. Valve: Walvoil. Motor: Danfoss.
Rod Diameter Lift Cylinder (2): 28 mm. Tilt Cylinder (1): 30 mm.
Stroke Lift Cylinder (2): 395 mm. Tilt Cylinder (1): 290mm.
Hydraulic Function Times Raise Lift Arms: 5.1Seconds. Lower Lift Arms: 3.5 Seconds. Bucket Dump: 2.3 Seconds. Bucket Rollback: 1.6 Seconds.
Drive System Main Drive: Fully hydraulic rubber track drive. Transmission: Direct drive of hydraulic motor to main undercarriage drive sprocket. Tracks: 200 mm wide. Rollers: 4 each side. Pressure: 24.5 kPa.
Capacities Cooling System: 5.6 L. Fuel Tank: 35 L. Engine Oil with Filter: 5.1L. Hydraulic Reservoir: 32 L. Hydraulic System: 44 L.
Controls Vehicle Steering: Ground drive is controlled by a single, pilot-operated joystick. Lift & Tilt: Controlled by one hand lever. Front Auxiliary (Std.): Controlled by two hand lever. Auxiliary Pressure Release: Fore and aft movement of hand lever after engine has been shut off. Engine Hand lever throttle: Key-type starter switch and shutdown. Starting Aid: Glow plugs – activated by key switch.
