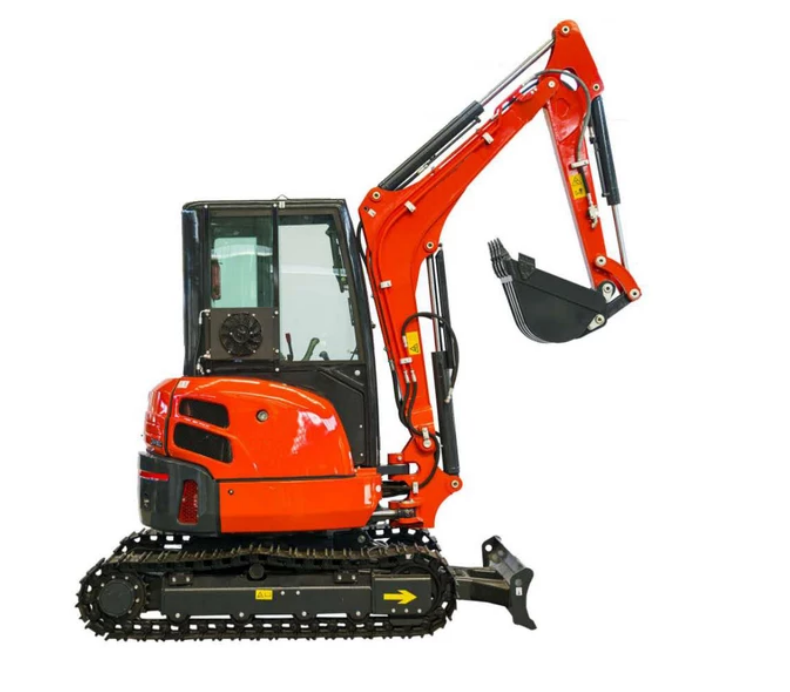

Operating weight of 3400kg, Yanmar engine, air conditioned cab, pilot control, two speed walking motor.
High quality Yanmar engine with stable performance. More power, low fuel consumption. Using world advanced reliable engine, high efficiency, low vibration, low noise, ensuring enough power output, can be used in all environments, engine is easy to be started even in the coldest climate. Adopting big power YANMAR TNV direct injection diesel engine, green emission, with high power output.
Based on matching technology of excellent engine and a fully imported hydraulic system, our excavators have more power output and improve working speed and helps to reduce fuel consumption.
Main Dimensions Overall Dimension (L x W x H): 4400 x 1600 x 2200mm. Chassis Width: 1500mm. Total Length Of Track: 2300mm. Track Width: 260mm. Chassis Ground Clearance: 458mm.
Operating Range Max. Digging Depth: 2500mm, Max. Digging Height: 4000mm Max. Dumping Height: 2700mm Max. Max Digging Radius: 4140mm.
Hydraulic System Main Pump: 28cc plunger. Operating Pressure: 18 Mpa. Rotary Motor: Variable plunger. Flow: 80/Min.
