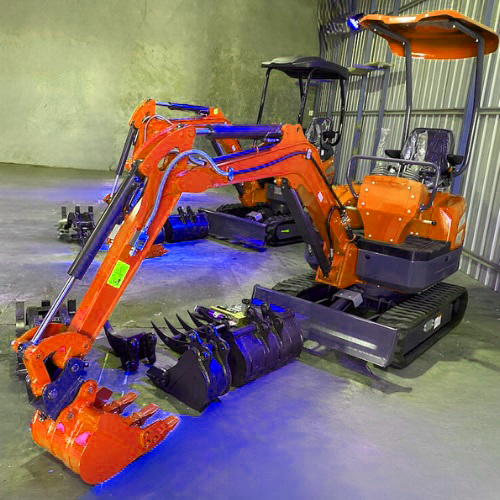

emed em1.5 mini excavator with yanmar engine + free attachments

High quality Yanmar engine with stable performance. More power, low fuel consumption. Using world advanced reliable engine, high efficiency, low vibration, low noise, ensuring enough power output, can be used in all environments, engine is easy to be started even in the coldest climate. Adopting big power Yanmar TNV direct injection diesel engine, green emission, with high power output.

Based on matching technology of excellent engine and a fully imported hydraulic system, our excavators have more power output and improve working speed and helps to reduce fuel consumption.

Standard FREE Inclusions

• Trenching bucket 200mm.
• GP bucket 400mm.
• Mud bucket 600mm.
• Mud bucket 1000mm.
• Mechanical quick hitch.
• Rake.
• Ripper.
• Mechanical grab.
• Filter kit.
• Tool kit.
• Pins.

Specifications
Operating Weight: 1650kg.
Bucket Capacity: 0.045 m³/100kg.
Bucket Width: 400mm.
Engine: Yanmar 3TNV70.
Rated Power: 10 kw/13.4hp/3600r/min.
Track Type: Rubber track.

Main Dimensions
Overall Dimension (L x W x H): 3160 x 1040 x 2377mm.
Wheelbase: 1130mm.
Chassis Width: 1130mm.
Total Length Of Track: 1450mm.
Track Width: 230mm.

Operating Range
Max. Digging Depth: 2167mm, Max.
Vertical Digging Depth: 1740mm Max.
Digging Height: 3258mm Max.
Dumping Height: 2293mm Max.
Digging Radius On Ground: 3513mm Min.
Rotation Radius: 1440mm
