High quality Yanmar engine with stable performance. More power, low fuel consumption. Using world advanced reliable engine, high efficiency, low vibration, low noise, ensuring enough power output, can be used in all environments, engine is easy to be started even in the coldest climate. Adopting big power Yanmar TNV direct injection diesel engine, green emission, with high power output.

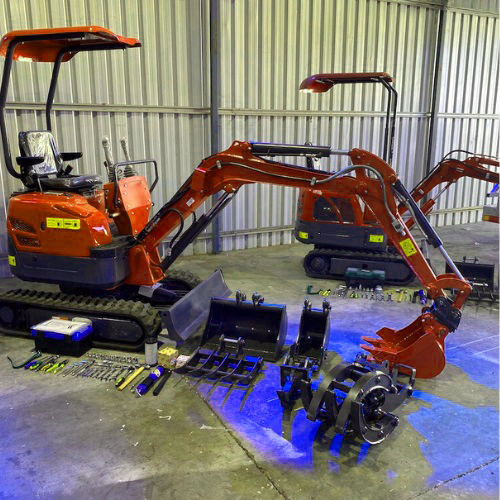

Based on matching technology of excellent engine and a fully imported hydraulic system, our excavators have more power output and improve working speed and helps to reduce fuel consumption.
Main Dimensions Overall Dimension (L x W x H): 3160 x 1040 x 2377mm. Wheelbase: 1130mm. Chassis Width: 1130mm. Total Length Of Track: 1450mm. Track Width: 230mm.
Operating Range Max. Digging Depth: 2167mm, Max. Vertical Digging Depth: 1740mm Max. Digging Height: 3258mm Max. Dumping Height: 2293mm Max. Digging Radius On Ground: 3513mm Min. Rotation Radius: 1440mm.
Plant Equipment Trailer 2.5 Ton. Aluminum Construction Australian Made
Specifications ATM: 2500kg. Tare Weight: 500kg. Payload: 2000kg. Deck Length: 2430mm. Deck Width: 1520mm. Drawbar Length: 1900mm. Floor: Aluminum extruded floor. Suspension: Tandem torsion axles. Brakes: Electric brakes on both axles. 4 x Tyres: 185R14LT, 8PR. 4 x Rims: 14X5.5 steel. Lights: LED waterproof. Ramp Length: 1600mm. Ramp Width: 400mm. Ramp Material: 75X50 tubing. Jokey Wheel: 350kg heavy duty. All stainless bolts & nuts. Four stainless tie downs at four corners.
Trailer Optional Extras
Jerry can holder – $150 Plus GST
Auger post suits 70mm auger – $120 Plus GST
Auger drive holder – $250 Plus GST
Registration – N/A outside Victoria $150 Plus GST in Victoria.
Tie down kit – $280 Plus GST – Kit includes: Blinders x 2, 8mm rated chain 9m long with two hooks x 1 & 3.2T Rated strap for bucket x 1.
Upgrade to alloy wheels x 4 – $495 plus GST
Spare wheel & tyre – $150 Plus GST – Note: 1 x spare wheel & Tyre is included in purchase price of the trailer.
