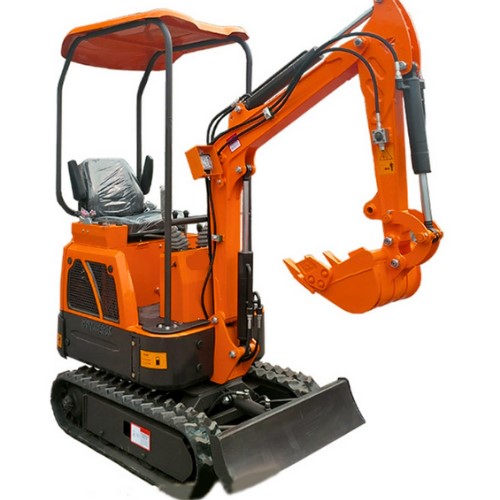

emed em1.2 mini excavator with trailer, auger, hammer + free attachments

Operating weight of 1200kg, this excavator is designed for small works and projects.

High quality Yanmar engine with stable performance. More power, low fuel consumption. Using world advanced reliable engine, high efficiency, low vibration, low noise, ensuring enough power output, can be used in all environments, engine is easy to be started even in the coldest climate. Adopting big power Yanmar TNV direct injection diesel engine, green emission, with high power output.

Based on matching technology of excellent engine and a fully imported hydraulic system, our excavators have more power output and improve working speed and helps to reduce fuel consumption.

This package includes:

• EM1.2 mini excavator with swing boom.
• Plant trailer 2.2T GVM.
• Auger drive with 200mm bit.
• Rock breaker silenced type to suit 0.8 to 1.4T excavator.

Standard FREE Inclusions:

• 200mm bucket.
• 340mm bucket.
• 500mm bucket.
• 800mm bucket.
• Mechanical quick hitch.
• Ripper.
• Rake.
• Log grab.
• Filter kit.
• Pins.

Specifications
Machine Weight: 1100kg.
Operating Weight 1200kg.
Bucket Capacity: 0.025 m³/120kg.
Bucket Width: 340mm.
Engine: Yanmar 3TNV70.
Rated Power: 10 kw/13.4hp/2200r/min.
Track Type: Rubber track.
Displacement: 854 CC.
Max Torque: 51.9N.M/1600r/min.
Fuel Capacity: 16.4L diesel.
Operating Pressure: 16MPa.
Main Pump: Zaneda gear pump.
Hydraulic Flow Rate: 18L/min.
Hydraulic Oil Capacity: 16L.

Main Dimensions
Overall dimension (L x W x H) 2770x896x1490mm.
Wheelbase: 770mm.
Chassis width: 896mm.
Total length of track: 960mm.
Track width: 180mm.
Chassis ground clearance: 132mm.

Operating Range
Max. Digging Depth: 1650mm, Max.
Vertical Digging Depth: 1376mm Max.
Digging Height: 2365mm Max.
Dumping Height: 1655mm Max.
Digging Radius On Ground: 2560mm Min.
Rotation Radius: 1200mm.

Plant Equipment Trailer 2.2 Ton. Aluminum Construction Australian Made

Specifications
ATM: 2200kg.
Tare Weight: 450kg.
Payload: 1850kg.
Deck Length: 2430mm.
Deck Width: 1220mm.
Drawbar Length: 1900mm.
Floor: Aluminum extruded floor.
Suspension: Tandem torsion axles.
Brakes: Electric brakes on both axles.
Tyres: 185R14.
Rims: 14x5" steel.
Lights: LED ADR.
Ramp length: 1600mm.
Ramp width: 350mm.
Ramp material: 75x50 tubing.
Jokey wheel: 350kg heavy duty.
All stainless bolts & nuts.
Four stainless tie downs at four corners.

Trailer Optional Extras

• Jerry can holder aluminum – $150 Plus GST
• Auger post suits 70mm auger – $120 Plus GST
• Auger Drive Holder – $250 Plus GST
• Registration – N/A outside Victoria - $150 Plus GST in Victoria.
• Tie down kit – $280 Plus GST – Kit includes: Blinders x 2, 8mm rated chain 9m long with two hooks x 1 & 3.2T Rated strap for bucket x 1.
• Upgrade to alloy wheels x 4 – $495 plus GST
• Spare wheel & tyre – $150 Plus GST – Note: 1 x spare wheel & tyre is included in purchase price of the trailer.
