Features: Req 45 - 90 hp tractor with hydrostatic or slow creeper gearing. 3PL and 540 PTO
Trench depths: 250, 300, 350 and 400 mm
Trench widths: 50 - 95 mm
Cutting wheel: 800 circumference digging disc with tungsten carbide teeth

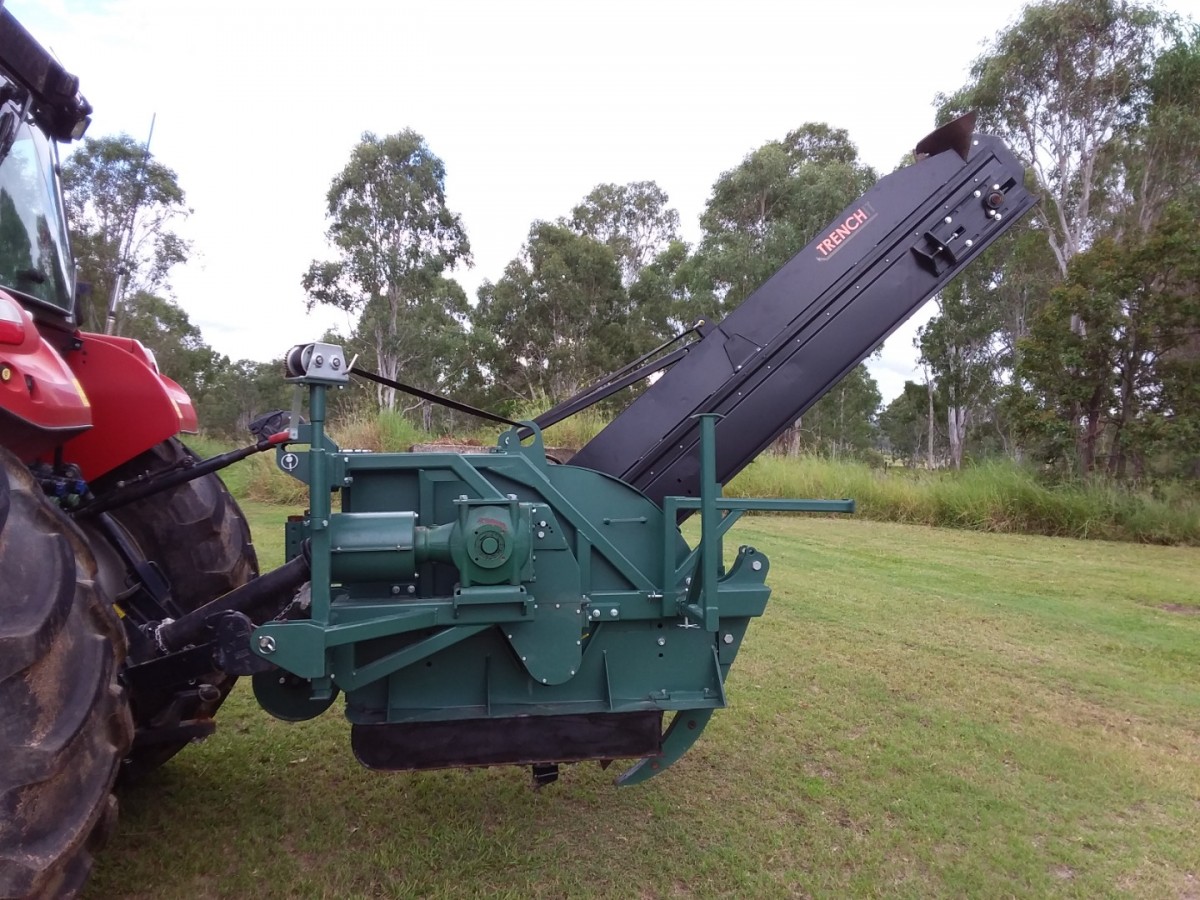

Conveyor system: Trench unit is completely enclosed above the ground and the soil is directed onto a conveyor, this is elevates it onto a small truck running beside the trencher
Conventional trencher: The conveyor unit can be removed easily to allow it to become a conventional trencher
Design: Made in New Zealand, it was designed for the turf industry in mind, providing a fast, reliable, clean and tidy trench. These are easily back filled with the SGH Hopper
Trenchit Hopper: SGH
Year: 2022
Features: SGH large sand and gravel hopper for trenches 50 - 300 mm, mounts to 3PL on tractor.
Has hydraulic chute that opens and closes, also has hydraulic agitator for faster sand flow. Hopper in operation sits on 2 rollers on either side of trench
